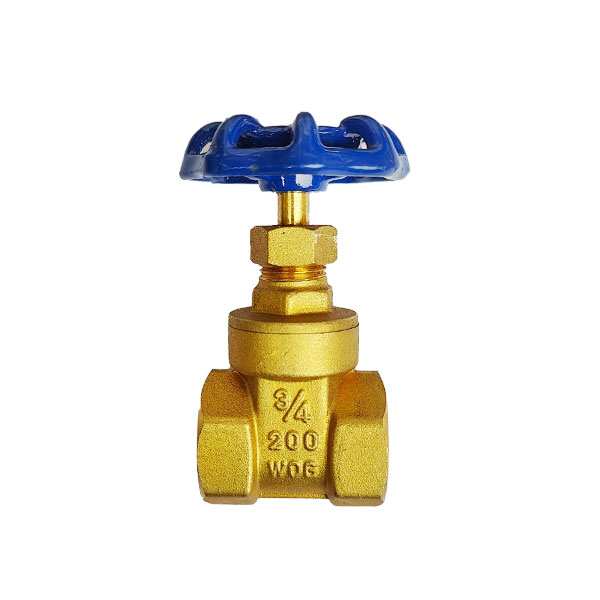

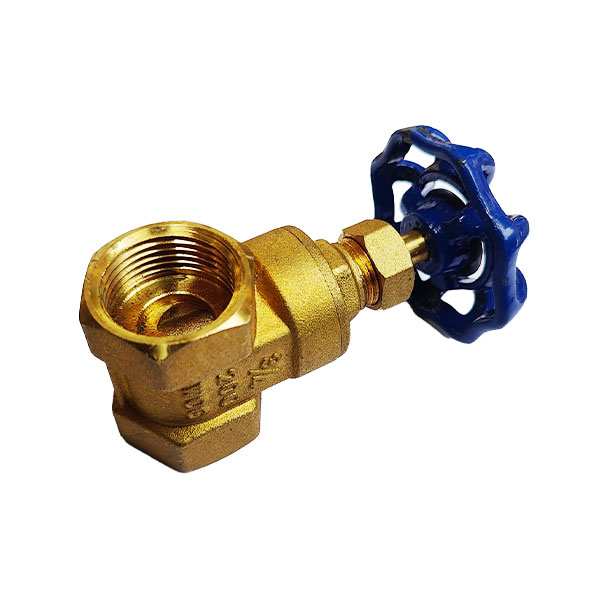

Brass Gate Valve 200 WOG

Brass Gate Valve available in 1/2″ and 3/4″

Features:
• Constructed of heavy-duty forged brass.
• Die-cast body and forged bonnet are connected with a PTFE body
to the bonnet gasket for a leakproof seat.
• Screwed bonnet, non-rising stem, solid wedge disc, and integral seats.
• Graphite stem seal packing.
• Cast iron hand wheel
• Rated at 200 PSI WOG; 125 PSI SWP (working pressure, non shock)
• Threaded ends produced to ANSI/ASME B1.20.1 (NPT) standards.
